VERSA automated Solid Phase Extraction systems (also known as automated SPE systems) fully automate SPE workflows from cartridge conditioning to sample derivatization. With the combination of the ReagentDrop™ dispenser, Heater-Shaker, Gripper, and Nitrogen Dryer, VERSA automated solid phase extraction (SPE) systems act to produce contamination-free sample pre-processing and trace analyte enrichment before performing sample analysis by a chromatography-based platform (HPLC, GCMS, HPLC-MS, etc).
The VERSA line of automated SPE systems are highly scalable for different throughputs and budgets. From the compact VERSA 10 to the highly customizable VERSA 1100, they can boost productivity in applications ranging from forensics, environmental samples, pharmaceutical compound analysis (ADME), metabolomics, and food safety.
Independently Validated
Dr. Thiangthum and Dr. Tanunkat from Bureau of Drug and Narcotic of Thailand use the VERSA 1100 automated Solid Phase Extraction system to quantify amphetamine and methamphetamine in drug users. They test more than 100,000 urine samples with VERSA automated SPE workstation each year.
Download the validation poster to see how the VERSA 1100 automated Solid Phase Extraction system is eliminating cross-contamination while ensuring accuracy and reproducibility in urine samples of drug users.
Modules Tailored for your Entire Automated SPE Workflow
Compatibility with Different Commercial Cartridges
1, 3, 6 mL Cartridges & 96 SPE Cartridge Plates
Gripper
moves cartridge block and nitrogen dryer for on-deck washing, elution, drying, and derivatization
Shaker-Heater
allows efficient sample pre-processing and derivatization, streamlines complete automated SPE workflow
Vacuum Manifold (Negative Pressure)
ensures samples and reagents flow through cartridges efficiently
Nitrogen Dryer
enables on-deck sample drying/concentration prior to reconstitution/derivatization
Reagent Block Cooler
cools reagents for derivatization
Positive Pressure Module
ensures samples and reagents flow through cartridges efficiently
ReagentDrop
dispenses reagents from off-deck reservoirs and eliminates tip usage – prevents dripping of volatile solvents
SPE Cartridge Holder

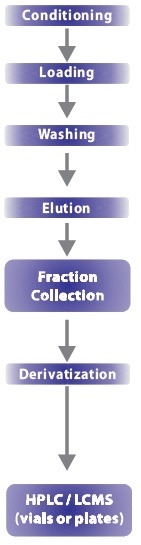

works with the Gripper to automate conditioning, loading, washing, eluting, and fraction collecting steps
- Capable of performing Automated Liquid Liquid Extraction on the same workstation
- Compatibility with organic and aqueous reagents
- Exhaust system available to remove volatile organic fumes
- HEPA/UV/LED Enclosure – keeps samples contamination-free
- Unparalleled Customer Service – our engineering team is readily available to troubleshoot your protocols
Specifications |
VERSA 1100 Automated Solid Phase Extraction (SPE) System |
| Deck Capacity | 15 |
| Pipetting Head
(Single Channel Function, Disposable Tip) |
4 or 8 channel |
| ReagentDrop | up to 8 |
| Supported Cartridges | 1, 3 or 6 mL cartridges or 96 SPE cartridge plate |
| Gripper | Gripper |
| Pressure Module(s) | 4 channel positive pressure module and/or vacuum manifold (negative pressure) |
| Nitrogen Dryer | 24 or 96 channels |
| Shaker-Heater (2400rpm, RT to 90°C) | Optional |
| Reagent Block Cooler | Optional |
| Liquid Level Sensing | Optional for Liquid Liquid Extraction |
| HEPA/UV/LED Enclosure | Included |
| Width x Depth x Height (cm) | 99 x 75 x 90 |
| Weight (kg) | 162 |
Applications – VERSA Automated Solid Phase Extraction Systems
- Food Safety
- Vitamin D from Blood/Serum Samples
- Drugs of Abuse in Forensic Analysis
- Compounds for Drug Discovery
- Iso-Flavonoides from Urine Samples
- Aflatoxins from Seafood Products
- Growth Promoters in Blood
- Semi-Volatile or Non-Volatile Analytes
- Protein Precipitation
Resources
- High-Throughput SPE & GC-MS Method for Quantification of Methamphetamine and Amphetamine in Urine Samples of Drug Users
- Liquid Liquid Extraction of β-carotene
- Validation of Automated Liquid Liquid Extraction of 25-hydroxy vitamin D
- Automated Mass Spectrometry Sample Preparation for Metabolomics Research
- Automated Glycan Extraction and MALDI-TOF Sample Preparation
- Automated Solid Phase Extraction for Cannabis Sample Preparation
Frequently Asked Questions
VERSA is compatible with 1 mL, 3 mL, and 6 mL cartridges, in addition to 96-well SPE cartridge plates.
VERSA Automated Solid Phase Extraction (SPE) workstations fully automate SPE workflow from sample preparation and cartridge conditioning to sample derivatization on a single deck through the use of innovative, flexible modules. The combination of a Shaker-Heater, Nitrogen Dryer, and Gripper enables a complete walk-away solution for any SPE protocol including reconstitution of dried samples.
VERSA is equipped with either a 4 or 8 channel disposable tip syringe pipettor with single channel functionality, providing increased versatility and preventing cross-contamination.
Yes, the VERSA automated SPE workstation is capable of performing automated Liquid-Liquid Extraction on the same workstation. VERSA is highly scalable for different applications, throughputs, and budgets.
Yes, the VERSA Automated Solid Phase Extraction (SPE) workstation is equipped with a nitrogen dryer block that can be used for solvent evaporation and sample concentration after collection. Reconstitution in the organic or aqueous solvent of your choice can be easily conducted with the use of the ReagentDrop.
