TRANSFORM 800

TRANSFORM 800 Microwave

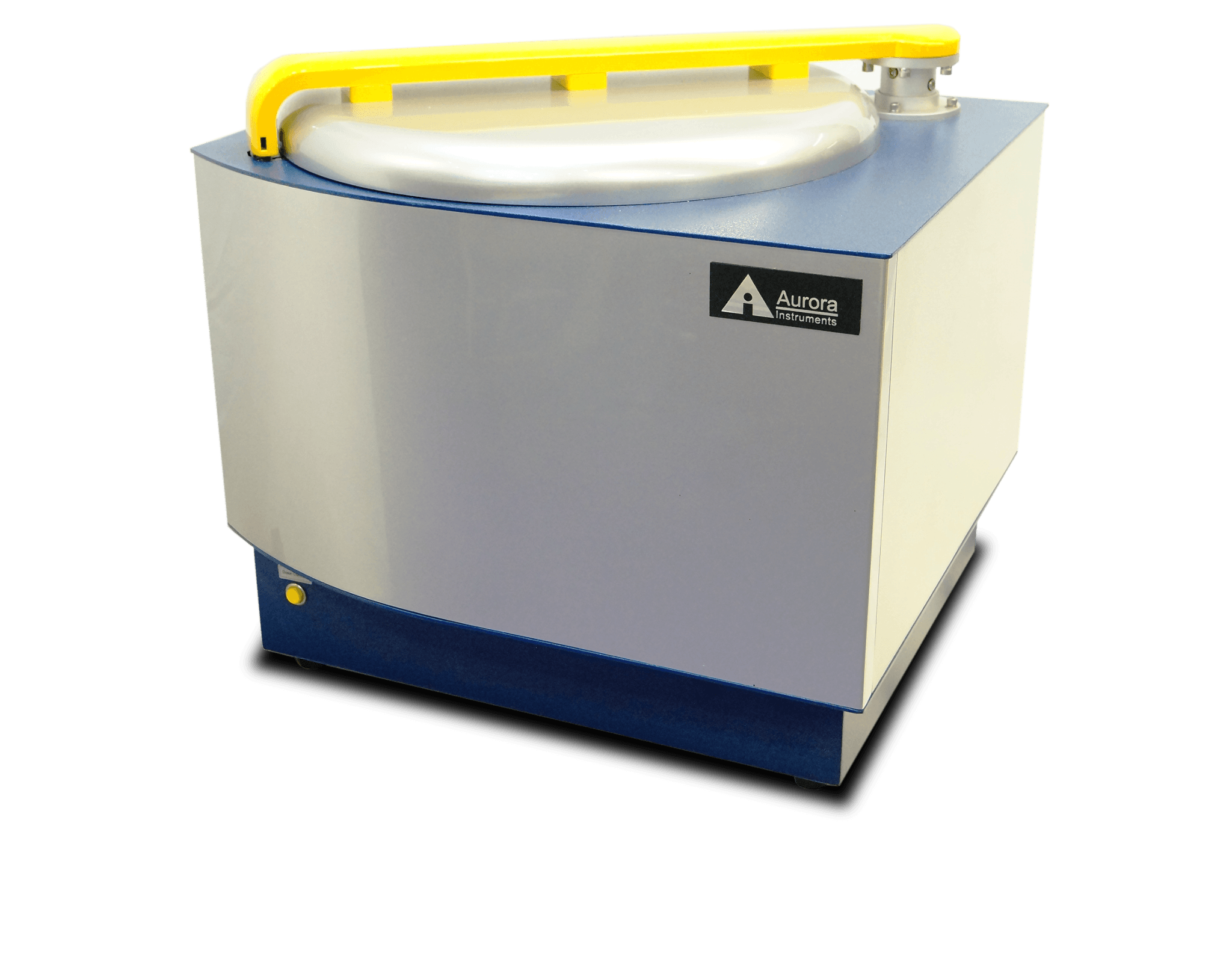

The TRANSFORM 800 Microwave Digestion System is a top-loading, closed vessel system with high-pressure capabilities to enhance the digestion quality while decreasing the overall sample preparation time. The TRANSFORM 800 Microwave Digestion system is capable of simultaneously running up to 10 high-pressure closed vessels on a rotating carousel to ensure an even distribution of temperature and pressure, providing a fast and pre-programmed method of digestion for even the most difficult of digestions. With one-step operation and full software control of temperature and power, this system compliments your Atomic Absorption (AA), ICP-AES, and ICP-MS applications whilst leading the way in optimum performance and industrial safety.

Features and Benefits

  • |

Safety First: The Transform series is top loaded, adding an extra level of security compared to front loading digestors. The safety interlock acts as a pressure and temperature sensor which automatically shuts down if any critical conditions are detected.

  • |

Robust: Both the vessels and chambers are lined with Teflon, meaning there are no restrictions on how strong an acid or base can be used, this system can handle Hydrofluoric Acid digestion with ease.

  • |

Real Time Monitoring: The software allows the operator to be able to constantly monitor the process of the digestion with real-time updates from the reference vessel.

  • |

Shorter Digestions: Due to the closed spinning carousel nature of the TRANSFORM MW800, conditions are spread uniformly throughout the oven cavity, meaning less time is dedicated to conducting sample preparation and more to receiving results.

  • |

Durable: 2 inches of stainless steel and an inner spring loaded lid makes this microwave a fortress to the stressful conditions within. If substantial pressure builds these act as the first line of defense for the operator.

Specifications

Number of Vessels

10 (9 standard + 1 sensor vessel)

Operating Pressure

800psi

Operating Temperature

250°C

Temperature Sensor

1

Vessel Volume

50 mL

Electrical

220 V, 50/60 Hz, 10 A

Microwave Power

1200 W

TRANSFORM 800 MICROWAVE DIGESTION

TRANSFORM 800 MICROWAVE DIGESTION SYSTEM

Independently Validated

Sudhir Chandra Saragia has published in the Journal of Epilepsy Research using the Microwave Digestion TRANSFORM 800 for determining trace elements levels in epileptic patients.

View the full journal validation to see how the TRANSFORM 800 Microwave is being used within antiepileptic therapy.

Microwave Digestion

Safety Innovation

TRANSFORM 680 MICROWAVE

Complete Robustness: As both the vessels and the oven cavity is lined with Teflon, any acid or base is free to be used within this system, this combined with the pre-programmed EPA method directory means there are no limitations from the get go.

TRANSFORM Microwave Digestion

Real-time monitoring: The software displays simple, easy to read information which is constantly updated from the reference vessel within the oven chamber, this gives the operator full control of each digestion.

TRANSFORM 680 MICROWAVE

Fume Exhaust System: Working alongside the collection reservoir in the vessel carousel to vent acidic fumes the TRANSFORM series comes with an exhaust tube that can direct and vent out the toxic environment contained within.

TRANSFORM Microwave Digestion

Pre-emptive Warning System: Rupture disks and vent detection mechanisms on each vessel automatically shuts down the power in response to over-pressure.
