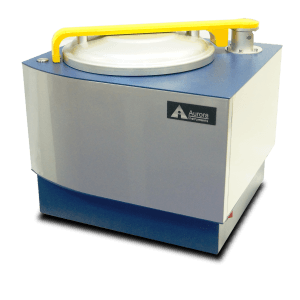

TRANSFORM 680 Microwave

PRODUCT INFORMATION


    The TRANSFORM 680 Microwave Digestion System is a top-loading, closed vessel system with high-pressure capabilities to enhance the digestion quality while decreasing the overall sample preparation time. The 680 Microwave Digestion system is capable of simultaneously running up to 6 high-pressure closed vessels on a rotating carousel to ensure an even distribution of conditions, providing a fast and pre-programmed method of digestion for even the most difficult of samples. With one-step operation and full computer control of temperature and power, this system compliments your Atomic Absorption (AA), ICP-AES, and ICP-MS applications.

    Specifications

    Number of Vessels6 (5 standard + 1 sensor vessel)
    Operating Pressure400psi
    Operating Temperature250°C
    Temperature Sensor1
    Vessel Volume80 mL
    Electrical220 V, 50/60 Hz, 10 A
    Microwave Power1200 W
    TRANSFORM 680 MICROWAVE DIGESTION

    Features and Benefits

    Safety First: The Transform series is top loaded, adding an extra level of security compared to front loading digestors. The safety interlock acts as a pressure and temperature sensor which automatically shuts down if any critical conditions are detected.

    Robust: Both the vessels and chambers are lined with Teflon, meaning there are no restrictions on how strong an acid or base can be used, this system can handle Hydrofluoric Acid digestion with ease.

    Real Time Monitoring: The software allows the operator to be able to constantly monitor the process of the digestion with real-time updates from the reference vessel.

    Shorter Digestions: Due to the closed spinning carousel nature of the TRANSFORM MW680, conditions are spread uniformly throughout the oven cavity, meaning less time is dedicated to conducting sample preparation and more to receiving results.

    Durable: 2 inches of stainless steel and an inner spring loaded lid makes this microwave a fortress to the stressful conditions within. If substantial pressure builds these act as the first line of defense for the operator.

    Independently Validated

    Jaiswal A.K. has published to the Journal of Forensic Sciences using the Microwave Digestion TRANSFORM 680 for determining mercury levels in blood.

    View the full journal validation to see how the TRANFORM 680 Microwave is being used within blood samples.

    TRANSFORM 680 MICROWAVE

    Safety Innovation

    Complete Robustness: As both the vessels and the oven cavity is lined with Teflon, any acid or base is free to be used within this system, this combined with the pre-programmed EPA method directory means there are no limitations from the get go.

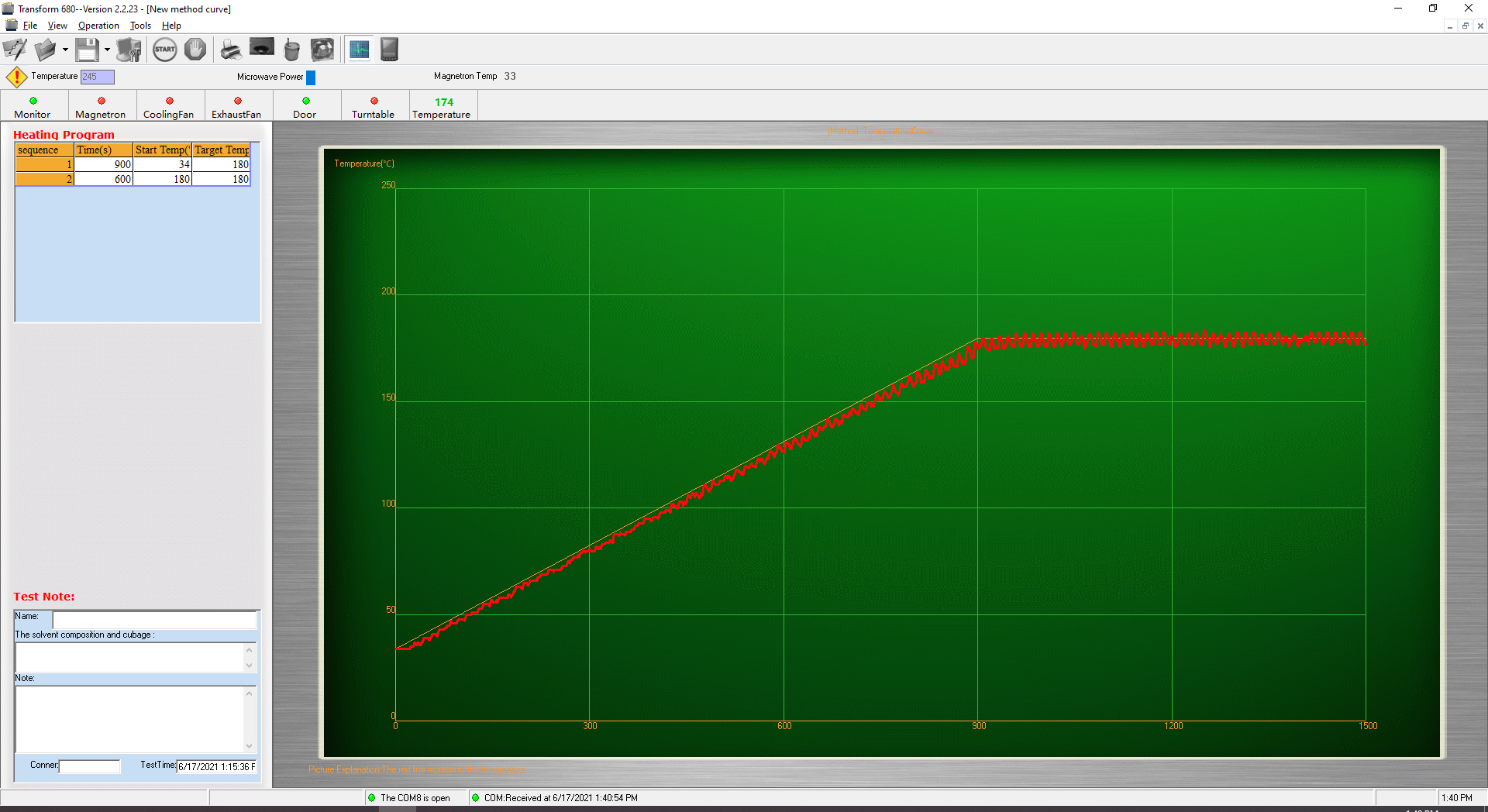

    Real-time monitoring: The software displays simple, easy to read information which is constantly updated from the reference vessel within the oven chamber, this gives the operator full control of each digestion.

    TRANSFORM 680 MICROWAVE

    Fume Exhaust System: Working alongside the collection reservoir in the vessel carousel to vent acidic fumes the TRANSFORM series comes with an exhaust tube that can direct and vent out the toxic environment contained within.

    TRANSFORM Microwave Digestion

    Pre-emptive Warning System: Rupture disks and vent detection mechanisms on each vessel automatically shuts down the power in response to over-pressure.

    Get more information on the TRANSFORM 680 Microwave Digestion Workstation:
