Microwave Digestion System

PRODUCT INFORMATION


    Quick, Easy, and Safe Solutions for Microwave Digestion Systems

    Aurora’s TRANSFORM series of Microwave Digestion systems are built with safety as the utmost concern. The Transform series of Microwave Digesters comes with a top-loading pressure-resistant heavy-duty oven chamber, safeguarding the operator under the most strenuous of circumstances. The Transform 800 Microwave Digestion system with its 800-psi operating pressure ensures all sample preparation for elemental analysis is conducted in the quickest time possible.

    TRANSFORM 680 MICROWAVE DIGESTION

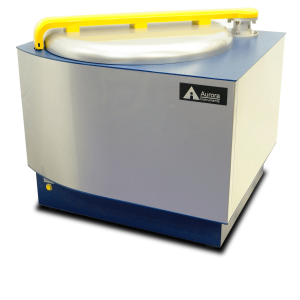

    TRANSFORM 800 MICROWAVE DIGESTION

    TRANSFORM 680 Microwave Digestion

    • 6 Vessels (5 Standard & 1 Sensor Vessel)
    • 400 psi Operating Pressure
    • 250°C Operating Temperature
    • 80mL Vessel Volume
    • Microwave Power 1200 W
    • Magnetron Frequency 2450 Mhz

    TRANSFORM 800 Microwave Digestion

    • 10 Vessels (9 Standard & 1 Sensor Vessel)
    • 800 psi Operating Pressure
    • 250°C Operating Temperature
    • 50mL Vessel Volume
    • Microwave Power 1200 W
    • Magnetron Frequency 2450 Mhz

    Applications

    • Agricultural
    • Clinical
    • Environmental
    • Forensics
    • Manufacturing
    • Petrochemical
    • Drug discovery and design
    • Metallurgy
    • Mining

    Frequently Asked Questions

    TRANSFORM 680 and 800 Microwave Digestion Systemsare fully computer-controlled. The software is very user-friendly and features direct control and sensing of temperature with real-time graphic display, automatic data storage, unlimited method storage, and complete record of instrument parameters.

    TRANSFORM Microwave Digestion System is a top-loading digester with safety interlocks. It is equipped with continuous temperature monitoring and automatic pressure release mechanism in oven cavity to avoid over-pressure. It also has rupture disks and vent detection mechanisms on each vessel which automatically shuts down power in response to over-pressure.

    The TRANSFORM series of Microwave digestion systems has full compliance with EPA methods and includean on-line EPA protocols and methods directory. It is also highly flexible and open, allowing the programming of individual methods for customizable sample preparation and ensuring suitability in a very wide range of applications.

    The TRANSFORM Microwave Digestion System is capable of simultaneously running up to 6 (MW 680) and 10 (MW 800) high-pressure closed vessels, providing a fast and automated method to digest even the most difficult samples. With simple one-step operation and full computer-control of temperature and power, this cost-effective microwave digester consolidates your Atomic Absorption (AA), ICP-AES, and CP-MS applications.

    The TRANSFORM 800 offers higher sample throughput compared to the TRANSFORM 680. The similarities and differences between the two Microwave Digestion Systems are summarized in the table below.

    TRANSFORM 680TRANSFORM 800
    6 Vessels (5 Standard & 1 Sensor Vessel)10 Vessels (9 Standard & 1 Sensor Vessel)
    400 psi Operating Pressure800 psi Operating Pressure
    250°C Operating Temperature250°C Operating Temperature
    60mL Vessel Volume50mL Vessel Volume
    Microwave Power 1200 WMicrowave Power 1200 W
    Magnetron Frequency 2450 MhzMagnetron Frequency 2450 Mhz
    Temperature Sensor (Thermocouple)Pressure/Temperature Sensor

    Get more information on the TRANSFORM series of Microwave Digestion Units:
