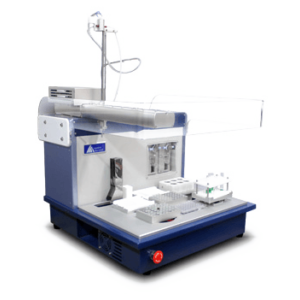

Automated Liquid-Liquid Extraction (LLE) Systems Solution
The VERSA automated Liquid Liquid Extraction (LLE) system, also known as an automated solvent extractor or liquid-liquid extractor, offers the most flexibility and throughput among all other liquid handlers, by utilizing our innovative modules such as Conductive Liquid Level Sensing, ReagentDrop Bulk Dispensing Module, On-deck Tube/Plate Shaker and Heater Assisted Nitrogen Dryer.
The VERSA Automated Solvent Extraction systems are highly scalable for different throughput and budget requirements. These instruments can automate a number of applications, including extractions of drugs-of-abuse and other metabolites of interest from bodily fluids, as well as biomolecules of interest from biological matrices (such as lipids and proteins). Please contact us for additional information and applications.
Independently Validated
Dr. Adrian Franke from Cancer Research Center of Hawaii is using VERSA Automated Liquid Liquid Extraction workstation to study Phytoestrogenic Isoflavonoids in epidemiologic and clinical research.
Download the validation paper to see how the VERSA automated Liquid-Liquid Extraction system is making a difference in cancer research.
- Capable of processing Automated Solid Phase Extraction on the same workstation
- Low dead volume maximizes sample recovery
- Conductive liquid level sensing to detect phase boundary
- Compatibility with organic and aqueous reagents
- Exhaust provision for volatile reagents
- HEPA/UV/LED Enclosure – keeps samples contamination-free
- Unparalleled Customer Service – our engineering team is readily available to troubleshoot your protocols to keep your VERSA liquid-liquid extractor running smoothly
VERSA110
VERSA1100
Specifications | ||
| Deck Capacity | 8 | 15 |
| Pipetting Head (Single Channel Function, Disposable Tip) | Single channel with dual syringe pump | 4 or 8 channel |
| ReagentDrop | up to 4 | up to 8 |
| Supported Labware Formats | 24, 48 test-tubes/vials and 96 deep well plates | 24 test-tubes/vials and 96 deep well plates |
| Gripper / Plate Transporter | Plate Transporter | Gripper |
| Reagent Block / Flat Plate Coolers | Either | Either |
| Nitrogen Dryer | N/A | 24 or 96 channels |
| Shaker-Heater (2400rpm, RT to 90°C) | Included | Included |
| Liquid Level Sensing | Optional | Optional |
| HEPA/UV/LED Enclosure | Optional | Optional |
| Width x Depth x Height (cm) | 59 x 66 x 90 | 99 x 75 x 90 |
| Weight (kg) | 40 | 162 |
Applications
- Sports Medicine
- Vitamin D from Blood/Serum Samples
- Drugs of Abuse in Forensic Analysis
- Compounds for Drug Discovery
- Iso-Flavonoides from Urine Samples
- Aflatoxins from Seafood Products
- Lipid Extraction
- Growth Promoters in Blood
- Semi-Volatile or Non-Volatile Analytes
