VERSA 1100 – High-Throughput Automated Liquid Handler

The 15-positioned modular deck configuration with options such as magnetic bead vortex, shaker-heater and ReagentDrop allow optimization to an extremely wide variety of protocols. Optional independent Z-axis movement allows for working with samples of varying volumes. Combined with highly accurate liquid handling technology, the VERSA 1100 high-throughput automated liquid handler eliminates cross-contamination.

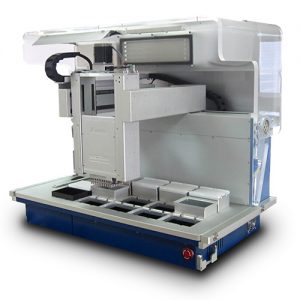

VERSA 1100 with 96 Channel Head

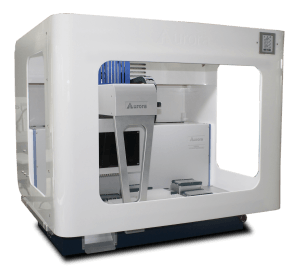

VERSA Automated Nucleic Acid Extraction and Purification

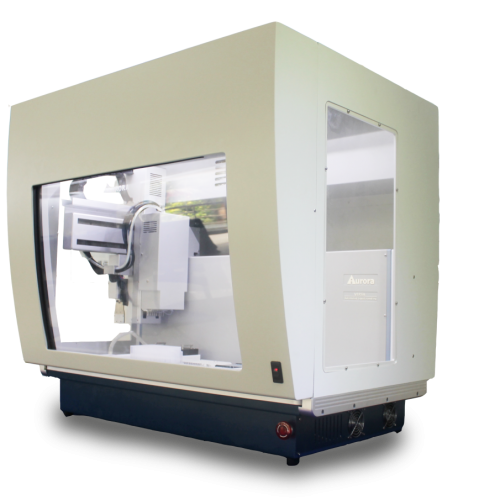

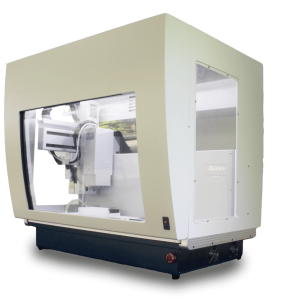

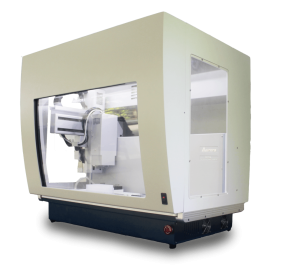

VERSA 1100 Gene with HEPA/UV/LED Hood

Features & Benefits

  • Flexibility – Various liquid handling modules
  • Independent Z-axis movement
  • Bulk dispensing ReagentDrop reduces reagent and tip waste
  • Optional on-deck incubations to preserve reagents and samples
  • Flexible 15-positioned modular deck tailoring to your needs
  • Open System – Keep your protocols, kits and labware
  • Contamination-Free with optional HEPA/UV/LED enclosure
  • Intuitive software pre-programmed with your protocols
  • On-site training and installation


Volume Range

1µL – 1000µL


CV <5% at 1µL

Deck Capacity


Pipetting Head

4 or 8 Channels

Single Channel Pipetting Function


Accessory Options

ReagentDrop (up to 8)

Independent Z Movement


HEPA/UV Enclosure

Dimensions (W x D x H)

98.5 x 75.2 x 89 cm


165 kg

Pipetting Options

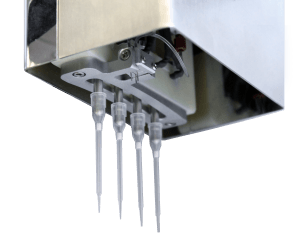

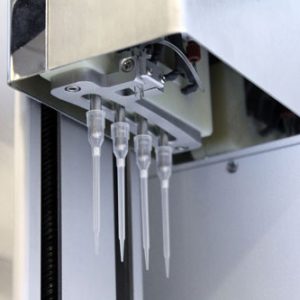

4 Channel Syringe Pipettor

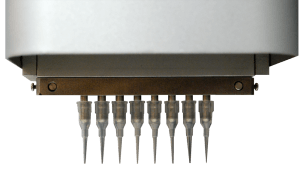

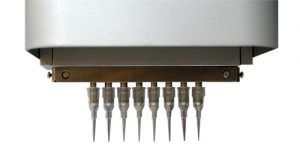

8 Channel Syringe Pipettor

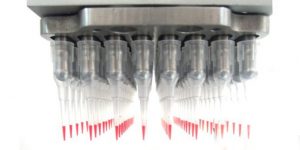

96 Channel Syringe Pipettor

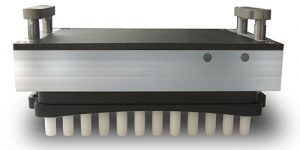

96 Channel Aspirator

Arm & Enclosure Options

Current Gripper
VERSA 1100 automated liquid handling system


UV/HEPA Enclosure

Reagent Drop Cluster

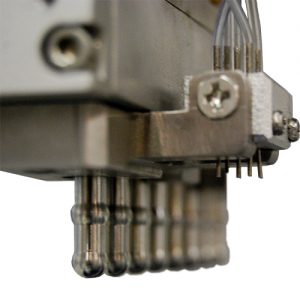

Triple Module Manifold

Application Specific Deck Options

Heater Shaker with PCR plate
Vacuum Manifold for Negative Pressure SPE Automation

Heater Shaker

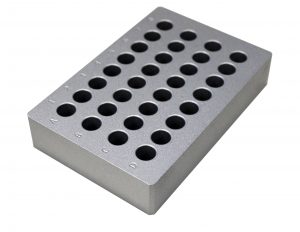

Custom Tube Adaptors

Magnetic Bead Vortexter

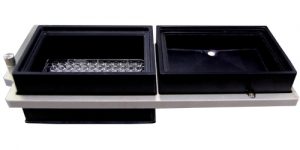

Vacuum Manifold

VERSA 1100 Sample Deck Configurations

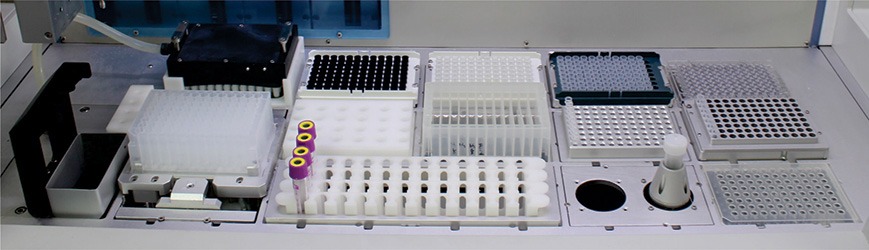

4 Channel Independent Deck

Frequently Asked Questions

This high-throughput automated liquid handler can handle anywhere from 1μL to 1000μL with the installation of a 1000μL syringe pump. However, a 250μL syringe pump is typically installed for conducting low volume assays such as PCR set up, Nucleic Acid Purification or NGS library preparation, guaranteeing a %CV of less than 5%. The ReagentDrop module can be used in VERSA 1100 to dispense bulk reagents without having to use tips or load reagents on deck. This module can dispense as little as 10μL to more than 1ml of reagent.

Yes, the VERSA 1100 high-throughput liquid handling system is equipped with liquid level sensing to detect the different layers of liquid present in specific applications such as liquid extraction, nucleic acid purification, and NGS library preparation. You have the option to choose from either single channel liquid level sensing or multi-channel liquid level sensing depending on your requirements.

The VERSA 1100 can be equipped with different modules to cater to different assays. Each module is designed and developed to meet specific requirements, this includes and is not limited to specific modules and customized adaptors. For example, Nitrogen dryers and positive pressure manifold can be installed to automated solid phase extraction. A Magnetic block, heater-shaker, and reagent block cooler can be installed to automate nucleic acid purification and NGS library preparation.

Yes. Customization is available to meet your unique requirements. Please speak to one of our product specialists or account managers to see how we can automate your protocol and eliminate your automation bottleneck.

Using disposable tips, each VERSA series can avoid sample cross-contamination. Along with the tip-touch function, our user friendly software VERSAWare allows you to have control of the air gap to eliminate the sample cross contamination when using our automated liquid handling systems.

Yes. The Versa 1100 high-throughput automated liquid handling system can be customized to meet unique needs. Please speak to one of our product specialists or account managers to see how we can automate your protocol to eliminate your automation bottleneck.
